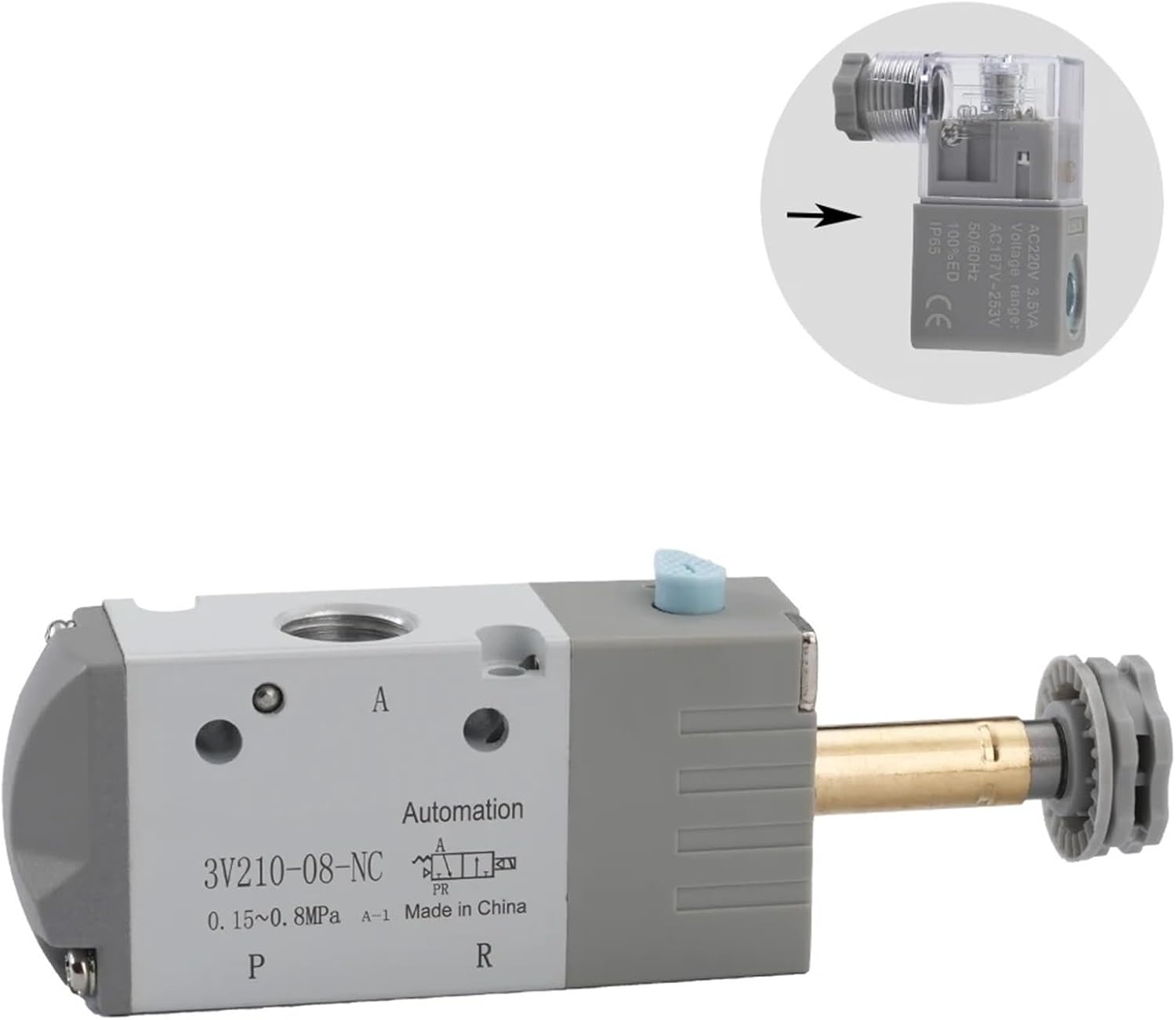

3V210-NC/NO-08 Pneumatic Tool Tools Solenoid Compressed Air Directional Control Valve Switch 2 Way 3 Port Position 3V21008 DC24V(24V AC)

ValvesSpecification:Item No.: 3V210-08 / 3V21008Type: Solenoid ValveAction Mode: Intemal Pilot TypeWorking Media: Clean AirEffective Sectional Area: 16.0mm²(Cv=0.89)Position: 2/3 PositionPort Size: Inlet==Exhaust=1/4Normal Operating Pressure: 1.5~8kgf/cm²(0.15~0.8MPa/1.5~8bar)Max.Operating Pressure: 1.0MPa(10Bar)Ambient And Fluid Tempereature: 0~120(32~248)Material: Nitrile Rubber and Aluminum AlloyInstallation Instructions:InstallationGrasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.RemovePush the release button to open the spring gasket so that the tubing can be released.Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety Instructions:1. Pressure: Ensure zero pressure in the tubing before removal.2. Spatter Zones: Avoid standard fittings in spatter-producing areas.3. Monitor Conditions: Stay within specified pressure and temperature ranges.4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.5. Placement: Avoid areas with heavy vibrations or shocks.6. Direction: Install tubing in the correct one-way direction.
