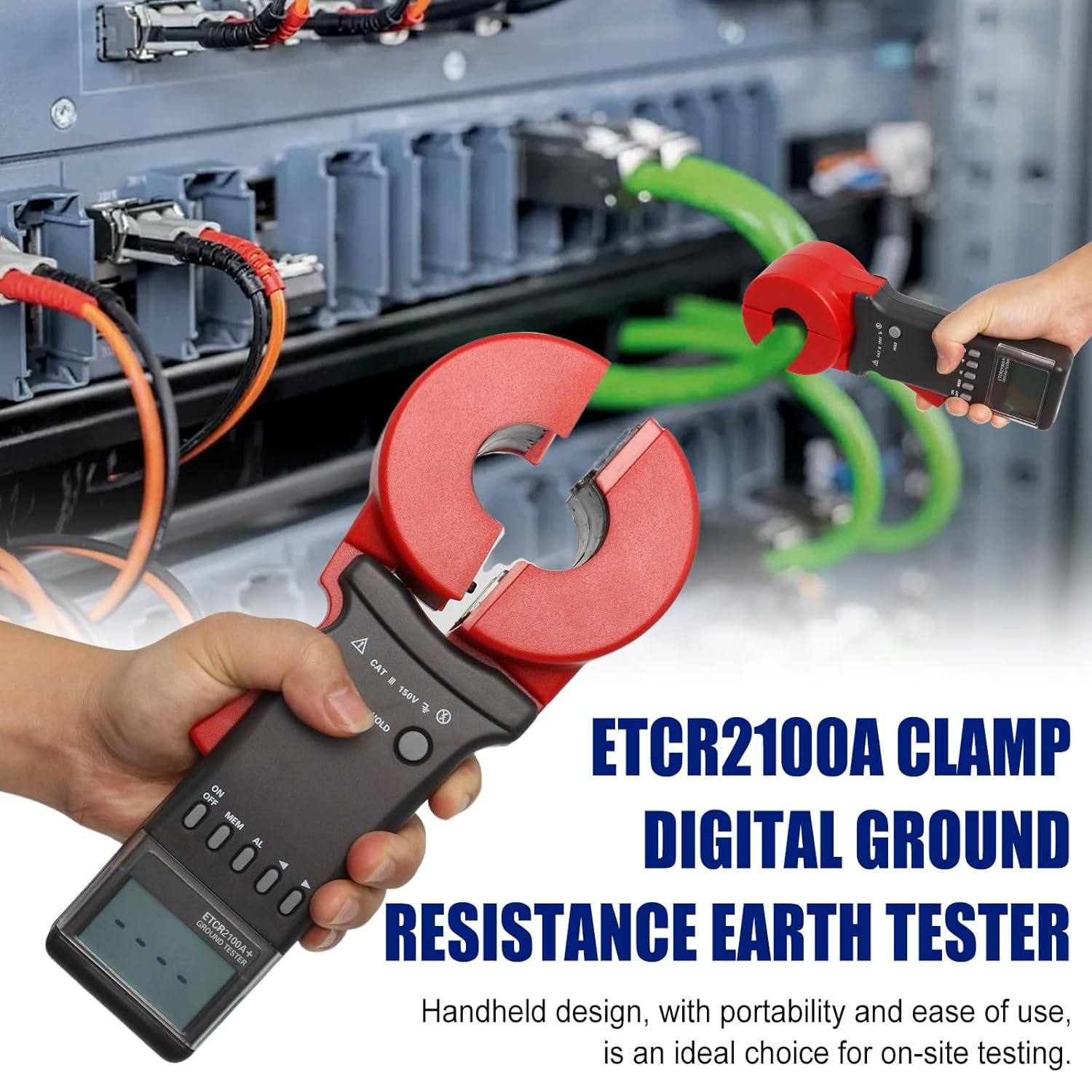

ETCR2100A+ Ground Resistance Meter Earth Tester Clamp Digital for Electric Power Telecommunications Meteorology Oil Field Architecture Industrial Electrical Equipment 0.01-200Ω NO Battery

Introducing the Podoy ETCR2100A+ Ground Resistance Meter, a versatile and reliable tool designed for measuring ground resistance and loop resistance in various fields such as electric power, telecommunications, meteorology, oil field, architecture, and industrial electrical equipment. This clamp-type tester boasts a major breakthrough in grounding resistance testing technology, allowing for non-contact measurement that is both safe and efficient. With a resistance range of 0.01Ω-200Ω and a resistance resolution of 0.001Ω, this meter ensures accurate and precise measurements. Its clamp size is Φ32mm, and it operates on a 6VDC power supply, typically using 4 section 5 alkaline dry batteries (LR6). The ETCR2100A+ features a 4-digit LCD digital display, data storage for up to 99 sets, and a sound and light alarm for easy operation. It also includes an attention section with specific instructions for safe and proper use. The package includes the Earth Resistance Tester, a test ring, and an instrument box. Please note that batteries are not included. Warranty: Free return within 1 month; non-manual reasons, half a year free parts.

• 【WIDELY APPLIED】ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc. When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster.
• 【PREMINUM QUALITY】Practical products with more reliable quality. A major breakthrough in grounding resistance testing technology, non-contact measurement is safe and fast.When measuring the grounding system with loop, it is not necessary to disconnect the grounding down conductor, no auxiliary electrode is needed, saving time and effort. Clamp-type grounding resistance meter can measure ground faults that cannot be measured by traditional methods, and can be applied to applications where traditi
• 【SAFETY USE】Model: ETCR2100A+,Clamp Size: Φ32mm,Clamp table size: 260mm × 90mm × 66mm,Resistance range: 0.01Ω-200Ω,Resistance resolution: 0.001Ω,Power: 6VDC (4 section 5 alkaline dry battery LR6),Single measurement time: 0.5 seconds,LCD display: 4-digit LCD digital display, length and width 47mm × 28.5mm,Data storage: 99 sets,Sound and light alarm: "beep--beep--beep--" alarm sound, press the AL button to open and close,Alarm threshold setting range Resistance: 1-199Ω
• 【ATTENTION】: When starting up, you can't press the trigger, you can't open the jaws, you can't clamp any wires. After the boot is completed, “OLΩ” is displayed before the trigger can be pressed. Before starting the machine, press the trigger once or twice to ensure that the jaws are closed well. When starting the machine, keep the natural static state of the clamp, can not flip the clamp, can not apply external force to the jaw
• 【PACKAGE INCLUDES】 Earth Resistance Tester ×1 Test ring ×1 Instrument box ×1, NOTE: it not include the battery，Warranty: Free return within 1 month; non-manual reasons, half a year free parts
